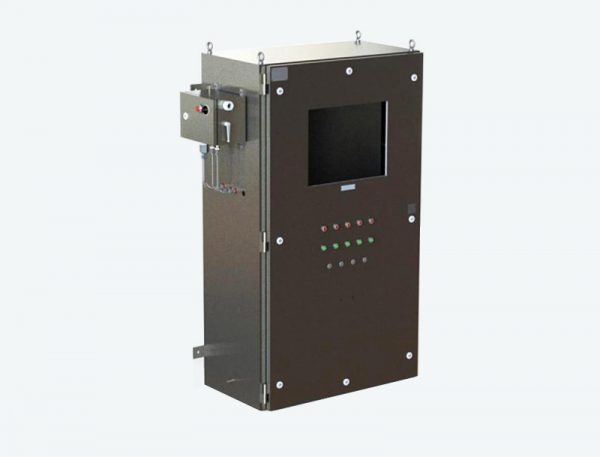

Using standardised building blocks and automated configuration and design tools, Expo’s Fast-Track service can deliver you tailor-made enclosures within weeks.

Expo manufactures the enclosure to your specifications and delivers to you component certified. If this is an Ex p enclosure, then the purge system will already be installed and tested. The enclosure can then be populated at your facility.

Category:

Description

For systems using purge & pressurization, Expo holds populated enclosure certificates for ATEX & IECEx, so it can offer a full certification service on the finished system, giving significant time and cost benefits. For most projects, provided we have received all the required documentation, the final inspection process is quick and straightforward and may not need a site visit by an Expo Certification Engineer.

Specification

Material of construction (body) 316L stainless steel
Material thickness 1.5 to 3mm depending on overall enclosure dimensions.
Maximum dimensions Dependent on certification required – see data sheets for more details
Form factor Standard rectangular
Window material Polycarbonate or laminated glass depending on region & certification.
Ingress protection IP54, IP66, UL50E Type 4X
Seal material Elastomer type compliant with certification
Door fasteners Tool operate ¼ turn stainless steel
Available features
  • Multiple doors
  • Gland and access plates
  • Windows
  • Equipment backplates
  • 19” rack facility
  • Standard plinth
  • HMI mounting (through the door)
  • Sun-shade / rain hood
  • Vortex cooler
  • Purge system & accessories
/
